Universal ClickFast Retrofit LED Linear Trunking Light Module

Cyanlux Retrofit LED Linear Trunking Light Module

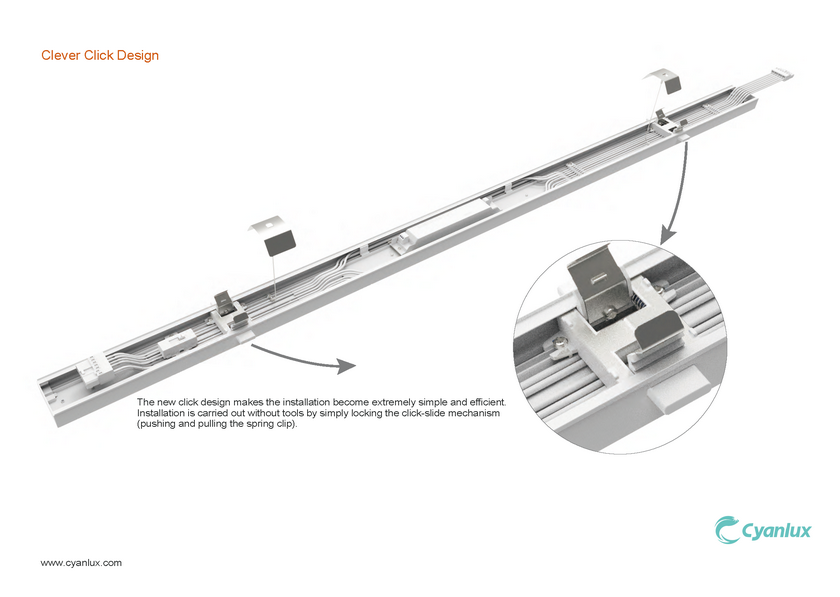

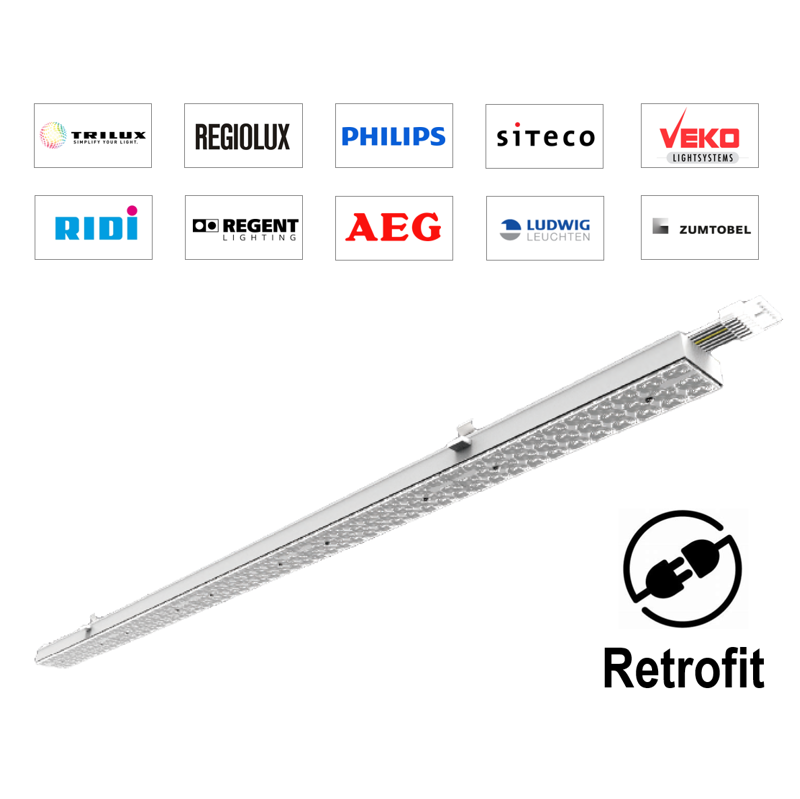

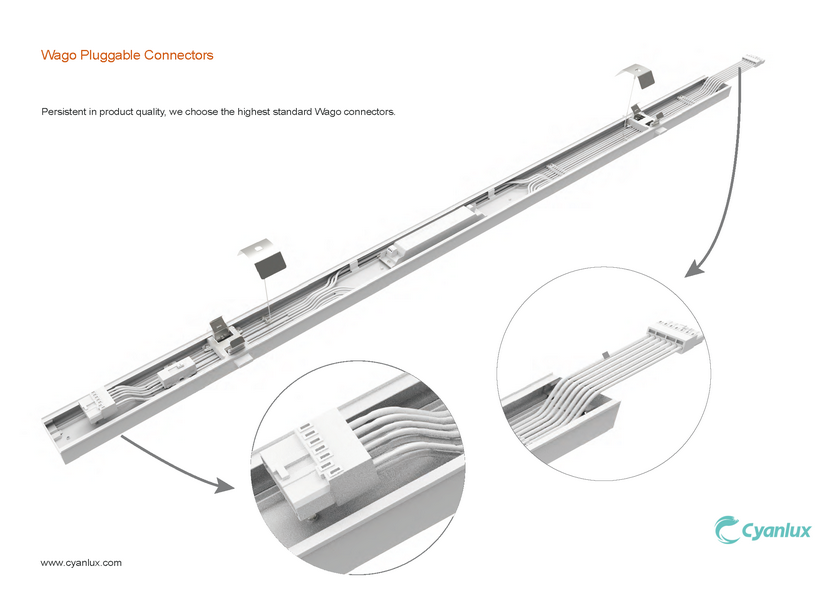

Cyanlux ClickFast universal LED Trunking retrofit module is the best choice for updating and compatible with the existing T8 & T5 trunking systems from Trilux, Siteco, Ridi, Regiolux, Philips, Ludwig, Zumtobel etc. The new click design makes the installation become extremely simple and efficient. Installation is carried out without tools by simply locking the click-slide mechanism (pushing and pulling the spring clip). The customers’ existing trunking can be maintained and re-used, all wires go thru our retrofit module and inter-connected by Wago fast connectors, save the time for re-installing the trunking and electricity connections.

In this solution, the existing trunking system are only used to hold/support the LED modules, the electricity goes thru the cable inside our retrofit LED module. If you want to utilize the electricity cable system in the current trunking, to plug the male connector from our retrofit module into the female connector from existing trunking to get power, then please use our 1 To 1 Trunking System LED Retrofit Solution.
Cyanlux specialized in LED linear lighting system and focus on LED linear lights only, we launched our first generation ofLED linear trunking system in 2015, with many years of manufacturing and application experiences and expertise, we improved our product gradually and upgraded new toolings for all parts and components, so now you can see the latest generation of Cyanlux LED linear trunking lights.

• Features

• - Upto 160 lm/W high efficiency to save the energy and luminaire quantity
• - 43 Seconds tool-less installation

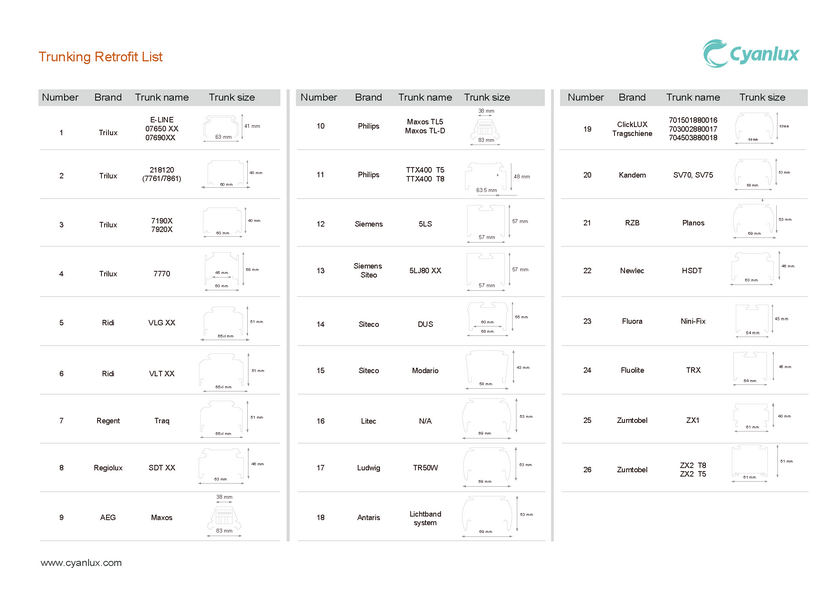

• - Compatible with 95% of market existing T5/T8 trunking, keep your current trunking and re-use it!
• - ENEC approval and 5 Years warranty!

• Applications

• - Supermarkets
• - Production Lines
• - Retails
• - Offices

• Specifications

- LED Modules

- Beam Angles

- Trunking Spec

• Certifications

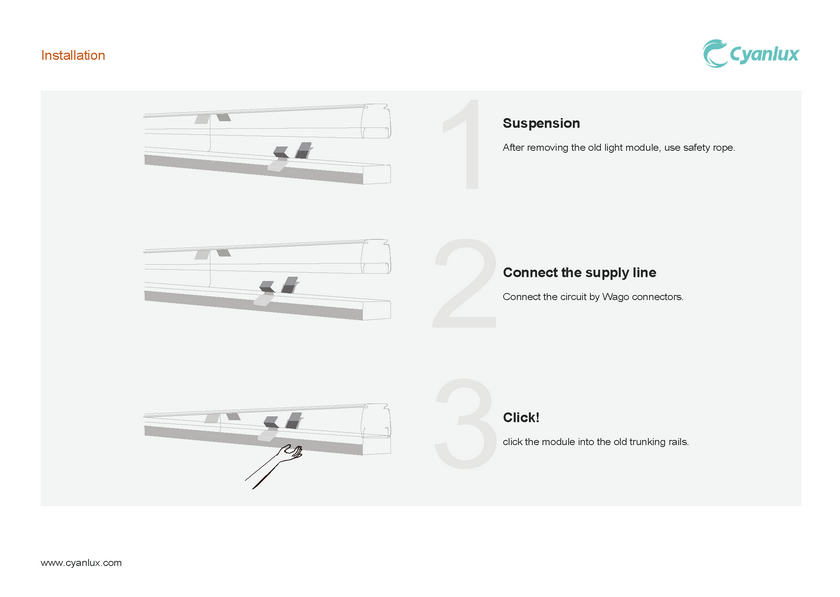

• Installations

• Downloads

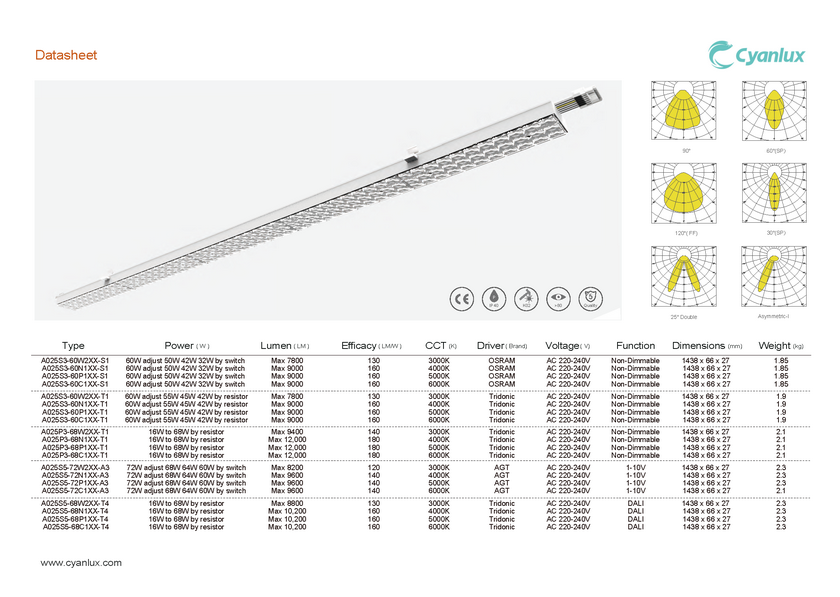

Cyanlux LED linear trunking light system Datasheet/ Installation Manual/ IES files Download
